华为eNSP模拟器 帧中继 fr协议实例

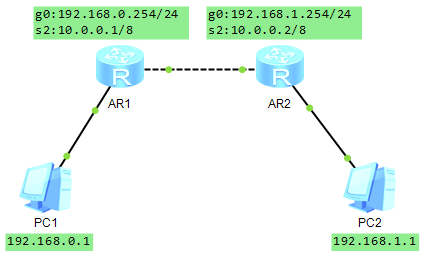

这节学习华为eNSP模拟器 帧中继 fr协议,首先搭建好拓扑图,2台路由器(每台配2SA接口卡)、2台客户端,如下图所示:

配置IP按上图所示。

接下来我们配置路由器,

AR1路由器配置:

<Huawei>sys

[Huawei]sysname R1

[R1]int g0/0/0

[R1-GigabitEthernet0/0/0]ip add 192.168.0.254 24

[R1]int s2/0/0

[R1-Serial2/0/0]ip add 10.0.0.1 8

[R1-Serial2/0/0]link-protocol fr

Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]:y

[R1-Serial2/0/0]fr interface-type dce

[R1-Serial2/0/0]fr dlci 20

[R1-Serial2/0/0]fr inarp

[R1]rip

[R1-rip-1]ver 2

[R1-rip-1]network 192.168.0.0

[R1-rip-1]network 10.0.0.0

<R1>sa

AR2路由器配置:

<Huawei>sys

[Huawei]sysname R2

[R2]int g0/0/0

[R2-GigabitEthernet0/0/0]ip add 192.168.1.254 24

[R2]int s2/0/0

[R2-Serial2/0/0]ip add 10.0.0.2 8

[R2-Serial2/0/0]link-protocol fr

Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]:y

[R2-Serial2/0/0]fr interface-type dte

[R2-Serial2/0/0]fr inarp

[R2]rip

[R2-rip-1]ver 2

[R2-rip-1]network 192.168.1.0

[R2-rip-1]network 10.0.0.0

<R2>sa


配置完成,开始测试下

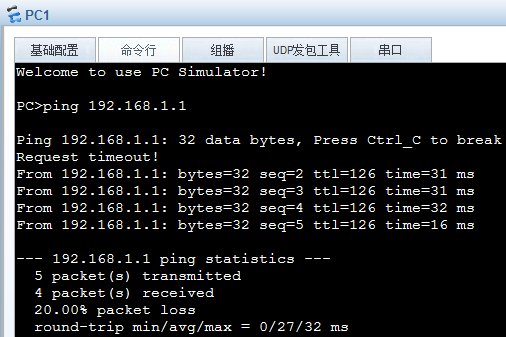

PC1 ping PC2

经测试ping通,本节学习完毕。
