华为eNSP模拟器 PPP协议实例

华为/eNSP 4682 8 2018-10-25

华为eNSP模拟器 PPP协议实例

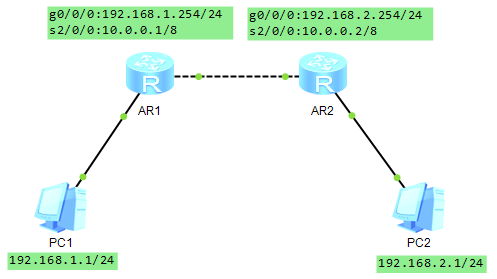

这节学习华为eNSP模拟器 PPP协议,首先搭建好拓扑图,2台路由器(每台加1块2SA接口卡)、2台客户端,如下图所示:

按上图标注IP进行相应配置。

开始配置路由器,

AR1路由器配置:

<Huawei>sy

[Huawei]sys R1

[R1]int g0/0/0

[R1-GigabitEthernet0/0/0]ip add 192.168.1.254 24

[R1]int s2/0/0

[R1-Serial2/0/0]ip add 10.0.0.1 8

[R1]aaa

[R1-aaa]local-user huawei password cipher 123456

[R1-aaa]local-user huawei service-type ppp

[R1]int s2/0/0

[R1-Serial2/0/0]ppp authentication-mode pap

[R1]ip route-static 0.0.0.0 0.0.0.0 10.0.0.2

<R1>sa

AR2路由器配置:

<Huawei>sy

[Huawei]sysname R2

[R2]int s2/0/0

[R2-Serial2/0/0]ip add 10.0.0.2 8

[R2-Serial2/0/0]ppp pap local-user huawei password cipher 123456

[R2]int g0/0/0

[R2-GigabitEthernet0/0/0]ip add 192.168.2.254 24

[R2]ip route-static 0.0.0.0 0.0.0.0 10.0.0.1

<R2>sa

配置完了,我们来测试下:

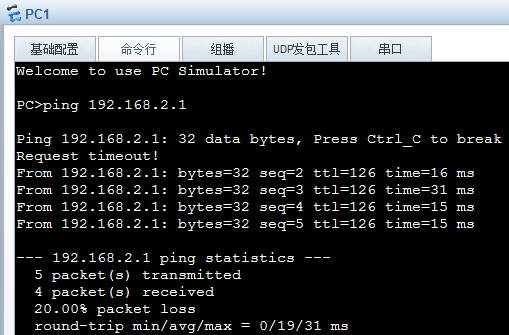

PC1 ping PC2

经测试已ping通,这节学习完成。
