华为模拟器eNSP实现DHCP自动分配IP

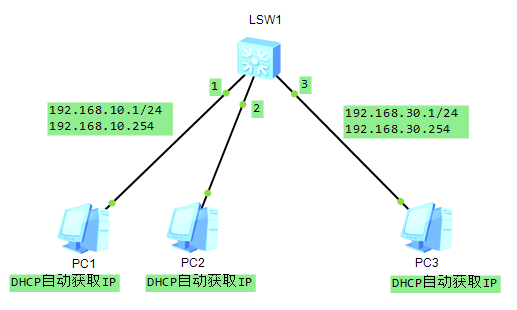

这里分享一下如何在eNSP模拟器中实现DHCP自动分配IP，首先我们建一拓扑图，如下所示：

图上显示的1、2、3为交换机端口，PC1和PC2同一个vlan 10，PC3为vlan 30，现在开始，代码如下：

<HUAWEI>sys

[HUAWEI]sysname Switch

[Switch]dhcp enable

[Switch]vlan 10

[Switch]vlan 30

[Switch]int vlan 10

[Switch-Vlanif10]ip add 192.168.10.1 24

[Switch-Vlanif10]dhcp select interface

[Switch-Vlanif10]dhcp server dns-list 192.168.10.254

[Switch-Vlanif10]dhcp server excluded-ip-address 192.168.10.254

[Switch]int g0/0/1

[Switch-GigabitEthernet0/0/1]port hybrid pvid vlan 10

[Switch-GigabitEthernet0/0/1]port hybrid untagged vlan 10

[Switch]int g0/0/2

[Switch-GigabitEthernet0/0/2]port hybrid pvid vlan 10

[Switch-GigabitEthernet0/0/2]port hybrid untagged vlan 10

[Switch]int vlan 30

[Switch-Vlanif30]ip add 192.168.30.1 24

[Switch-Vlanif30]dhcp select interface

[Switch-Vlanif30]dhcp server dns-list 192.168.30.254

[Switch-Vlanif30]dhcp server excluded-ip-address 192.168.30.254

[Switch]int g0/0/3

[Switch-GigabitEthernet0/0/3]port hybrid pvid vlan 30

[Switch-GigabitEthernet0/0/3]port hybrid untagged vlan 30

<Switch>sa

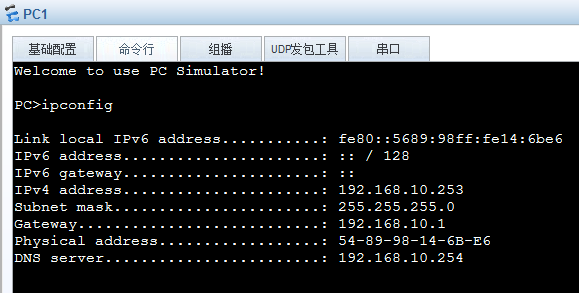

按以上设置完成后，现在来测试下，我们在PC1上双击打开命令输入ipconfig，如下图显示说明成功：

说明：配置那里一定要先DHCP这项，否则是获取不到IP的，如下设置即可
