华为eNSP模拟器 单臂路由配置实例

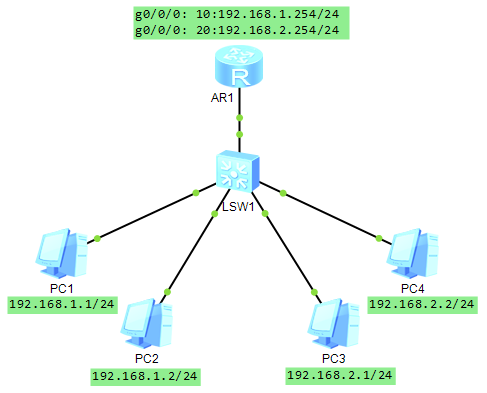

这节我们来学习华为eNSP模拟器 单臂路由配置，先搭建拓扑图，如下：

然后根据上面所示IP进行相应设置。

接下来我们配置AR1路由器，命令如下：

<Huawei>sys

[Huawei]sysname R1

[R1]int g0/0/0.10

[R1-GigabitEthernet0/0/0.10]ip add 192.168.1.254 24

[R1-GigabitEthernet0/0/0.10]dot1q termination vid 10

[R1-GigabitEthernet0/0/0.10]arp broadcast enable

[R1]int g0/0/0.20

[R1-GigabitEthernet0/0/0.20]ip add 192.168.2.254 24

[R1-GigabitEthernet0/0/0.20]dot1q termination vid 20

[R1-GigabitEthernet0/0/0.20]arp broadcast enable

<R1>sa

再配置交换机LSW1，命令如下：

<Huawei>sys

[Huawei]sysname switch

[switch]int g0/0/1

[switch-GigabitEthernet0/0/1]port link-type trunk

[switch-GigabitEthernet0/0/1]port trunk pvid vlan 10

[switch-GigabitEthernet0/0/1]port trunk allow-pass vlan all

[switch]int g0/0/2

[switch-GigabitEthernet0/0/2]port link-type trunk

[switch-GigabitEthernet0/0/2]port trunk pvid vlan 10

[switch-GigabitEthernet0/0/2]port trunk allow-pass vlan all

[switch]int g0/0/3

[switch-GigabitEthernet0/0/3]port link-type trunk

[switch-GigabitEthernet0/0/3]port trunk pvid vlan 20

[switch-GigabitEthernet0/0/3]port trunk allow-pass vlan all

[switch]int g0/0/4

[switch-GigabitEthernet0/0/4]port link-type trunk

[switch-GigabitEthernet0/0/4]port trunk pvid vlan 20

[switch-GigabitEthernet0/0/4]port trunk allow-pass vlan all

<switch>sa

配置完了，我们来测试下：

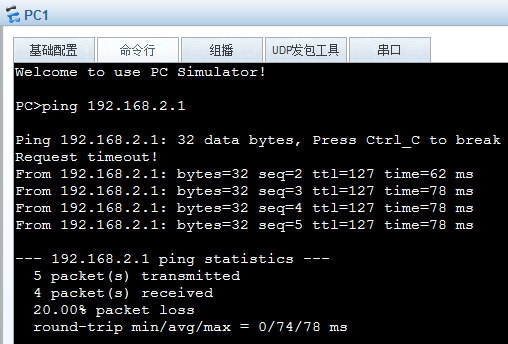

PC1 ping PC3

经测试ping通，这节学习完毕！
